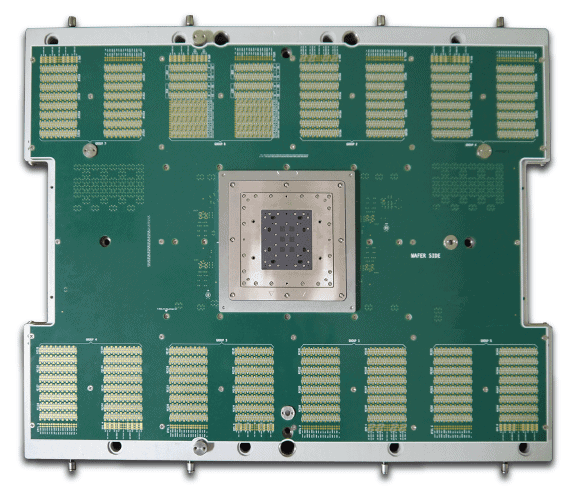

PROBE CARD (ATE)

Silicon Circuitsprovides complete probe card (ATE) design solution to various sector/domains of the electronics industry. We are experienced in designing and detailing of 62 layer boards with high-speed SERDES. Miniature PCB design with mixed-signal design which can fit in a small tube. Our team has experience in delivering desired outputs quickly and accurately as per specifications and guidelines

Design technologies with micro via HDI technology with 4 mils drill micro via We are experienced in handling highly complex PCB designs for cutting-edge technologies for various applications like Defence, Aerospace, Telecom, Medical, Industrial and consumer electronics.

PCB Layout Highlights

High Speed digital, Analog, Mixed and RF designs.
High Layer count boards : upto 62 layers
High Speed Boards : 15 GHz
Impedance controlled Designs with delay matching, Stack-up and material selection.
FP creation as per IPC7351 (A,B and C) including if any customer specifications standards
Designs with Micro Vias, Blind Vias, Buried Vias and backdrill
DFine Pitch BGA (0.5mm), High Pin count BGA (1900+ pins).
